Audio Technica

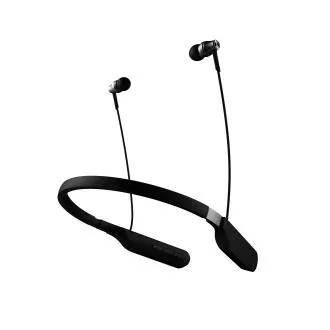

The ATH-DSR5BT wireless headphones are the first in-ear model to employ Audio-Technica’s Pure Digital Drive system, which utilizes a newly developed A-T chipset to control driver amplitude directly with digital signals so no sound-degrading digital-to-audio conversion is required. Additionally, the ATH-DSR5BT headphones support the Qualcomm® aptX™ HD codec to receive 24-bit/48kHz audio signals, and they feature highly efficient dual phase push-pull drivers of different diameters (9.8 mm 8.8 mm) to ensure crystal-clear sound reproduction.

The ergonomic design of the neckband causes it to rest comfortably on the back of the neck and positions the microphone, volume controls and music/video playback control in front of the neck for easy access. The headphones are powered by an internal lithium polymer rechargeable battery that, when needed, can be quickly recharged using the included 30 cm (1') USB charging cable. Four sizes (XS, S, M, L) of interchangeable silicone ear tips are also included to ensure a custom fit with excellent sound isolation.

- Exclusive Pure Digital Drive system keeps audio signal completely digital from source to driver for exceptionally pure sound

- Highly efficient dual phase push-pull drivers of different diameters (9.8 mm 8.8 mm) provide crystal-clear sound reproduction

- Compatible with Qualcomm aptX HD, aptX, AAC and SBC codecs, enabling wireless transmission with a resolution up to 24-bit/48kHz

- Newly designed ergonomic neckband conveniently positions the microphone, volume controls and music/video playback control

- Includes silicone ear tips (XS/S/M/L), 30 cm (1') USB charging cable and carrying case

Newly developed A-T chipset controls driver amplitude directly with digital signals – no D/A converter required

Specs:

Type	Dynamic
Driver Diameter	9.8 mm, 8.8 mm
Frequency Response	5 – 40,000 Hz
Sensitivity	100 dB/mW
Impedance	35 ohms
Battery	3.7V rechargeable lithium polymer battery
Battery Life	Approx. 8 hours continuous use (500 hours standby) Charging Time: Approx. 2.5 hours (for 0-100% charge) Depending on environmental conditions
Weight	32 g (1.1 oz), without cable
Accessories Included	30 cm (1') USB charging cable, eartips (XS, S, M, L), carrying case
Type (Microphone)	Condenser
Sensitivity (Microphone)	-44 dB (1V/Pa at 1 kHz)
Frequency Response (Microphone)	100 – 10,000Hz
Polar Pattern (Microphone)	Omnidirectional

Input jack: Micro USB Type B
Communication System: Bluetooth Version 4.1
Output: Bluetooth Specification Power Class 2
Maximum Communication Range: Line of sight - approx. 10 m (33')
Compatible Bluetooth Profiles: A2DP, AVRCP, HFP, HSP
Support Codec: aptX HD, aptX, AAC, SBC
