NEW! 7 XL Linkable Kit

FULL ADJUSTMENT. TOTAL PERFORMANCE. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 7 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

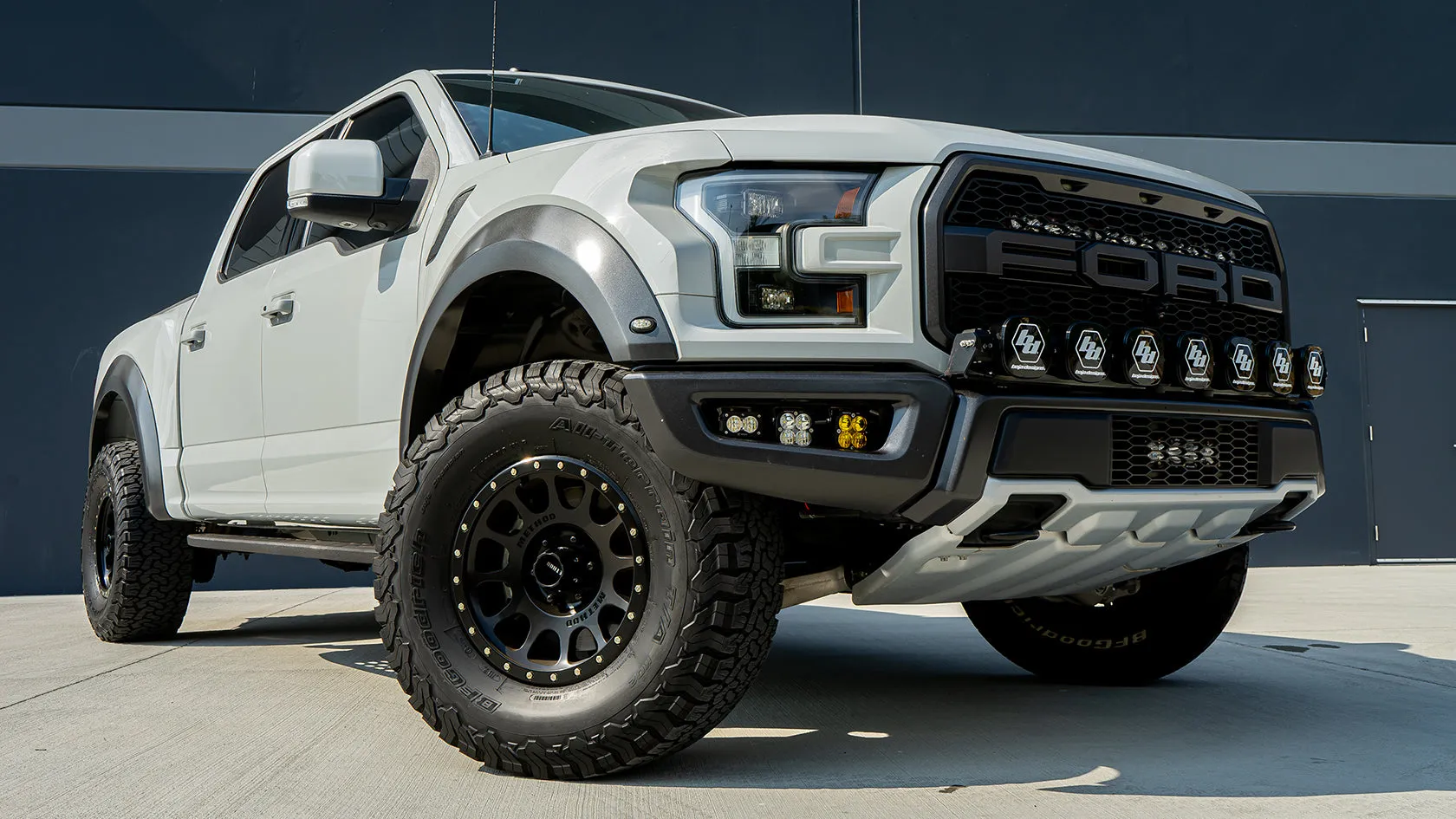

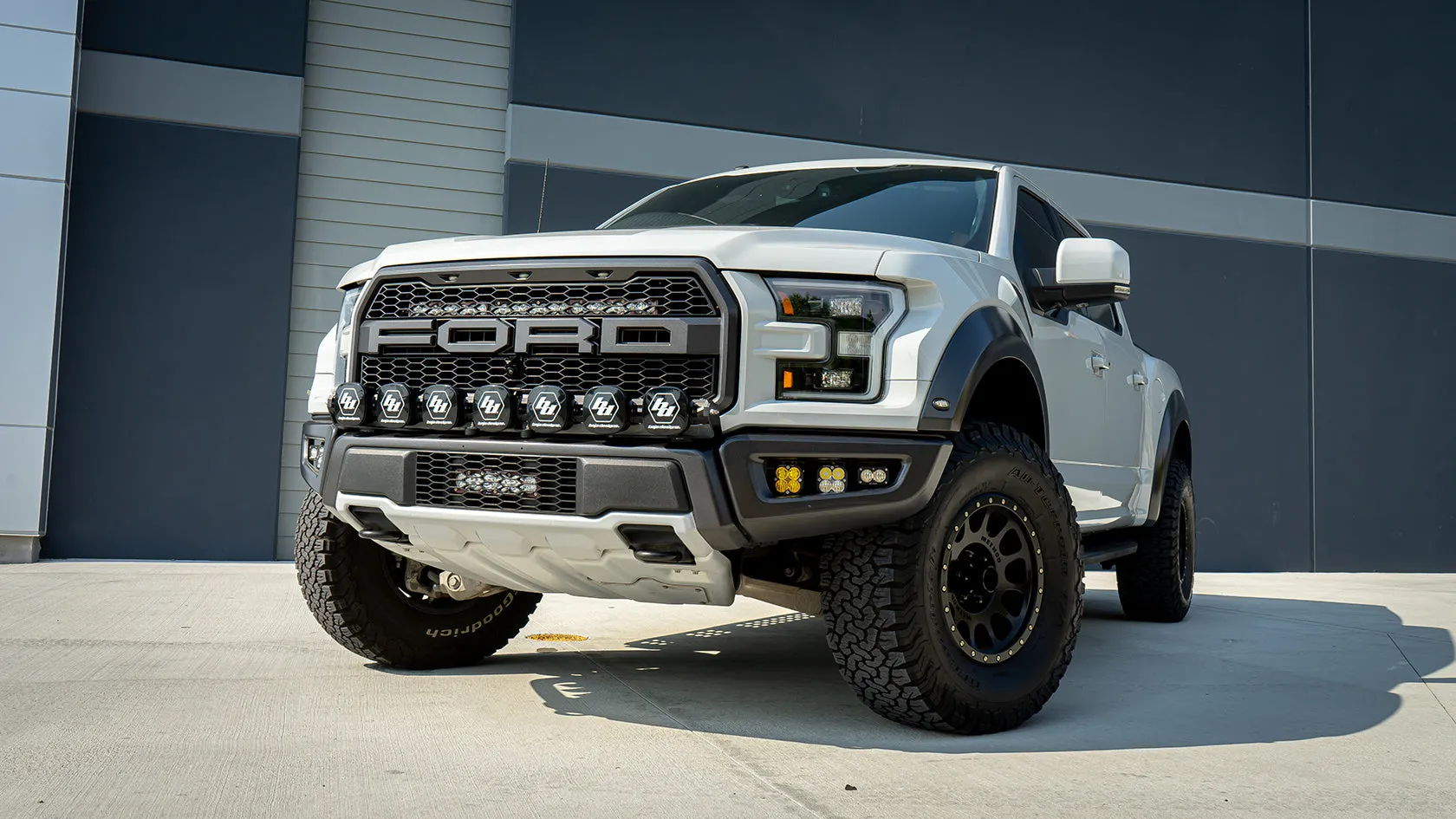

This kit includes all the necessary components to outfit your 2017 Raptor with 7 XL Linkables. This kit is designed for the enthusiast who has a factory upfitter system in their truck or sPOD / Switch Pros unit.

FEATURES

Satisfactions Guarantee – 30 Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

SPECIFICATIONS

Lumens: 22,050 Utilizing 28 LEDs
Wattage/Amps: 182W / 14A
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

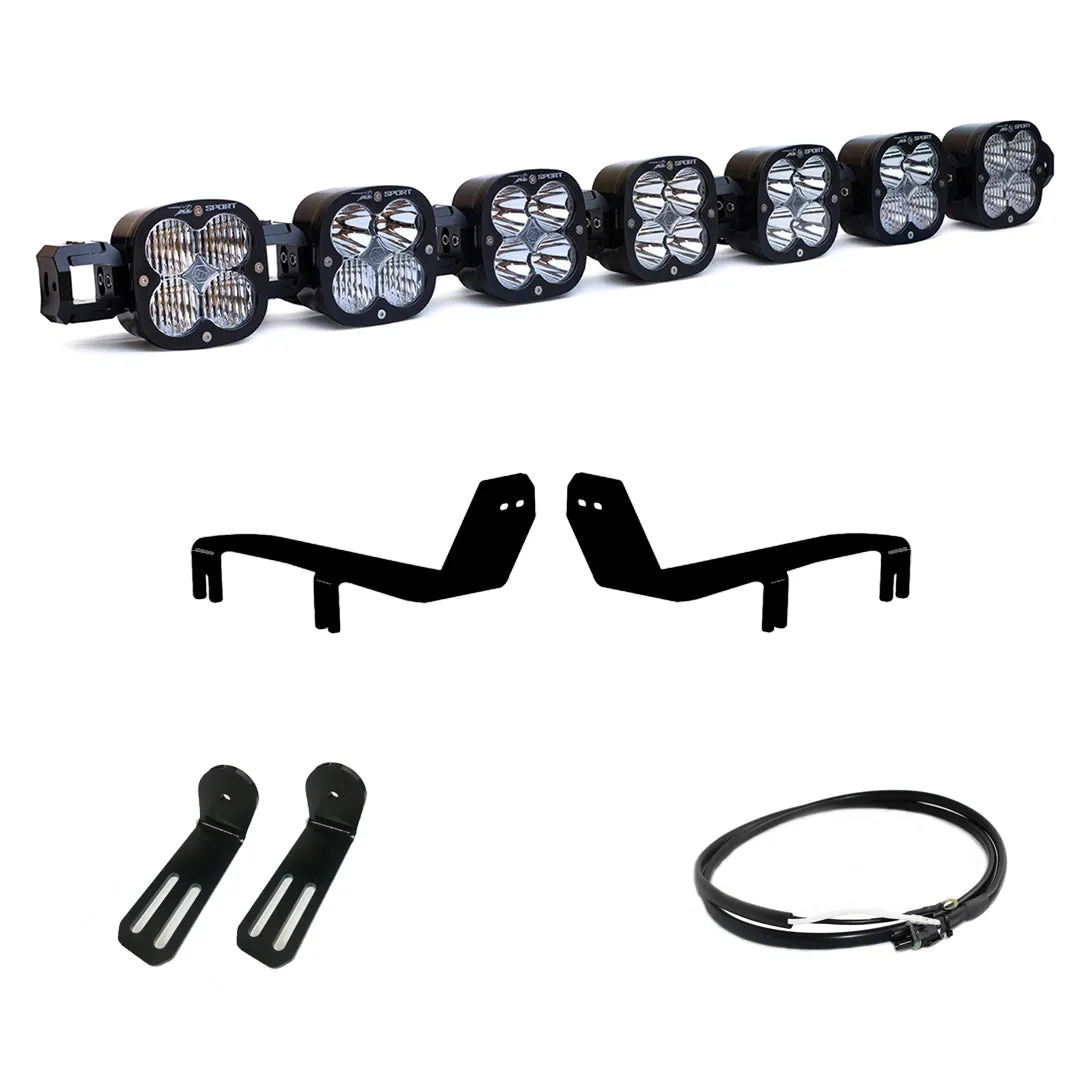

INCLUDES

(3) XL Sport Spot LED Light
(2) XL Sport Driving/Combo LED Light
(2) XL Sport Wide Cornering LED Light
(7) XL Sport Rock Guards
Support Kit
Standard Harness
Raptor Brackets

ADJUSTIBILITY

BEAM PATTERNS

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
