30" Stealth Light Bar Kit

We are excited to introduce the Stealth LED Light Bar Kit for the 2015 Chevy Colorado and GMC Canyon! This kit allows you to easily mount a 30" light bar in the factory lower grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

PERFECT FITMENT. The Stealth LED Light Bar Kit for the 2015 Chevrolet Colorado from Diode Dynamics allows you to easily mount a 30" light bar in the factory lower bumper opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit retains the factory lower grille for a clean, OEM-like appearance.

NOTE: This kit is compatible with ZR2 Bison trim levels.

DESIGNED FOR PERFORMANCE. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

FUNCTIONAL PATTERNS. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

• The DRIVING pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20wx8h degree pattern that is far more useful for directing light downrange at high speeds.
• The FLOOD pattern was designed to provide uniform, even illumination and a full 80wx50h degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.
• The COMBO pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20wx8h degree pattern while also illuminating area around it in a full 80wx50h degree spread. The Stage Series 30" Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.

FEATURES

• Direct fitment on 2015 Chevy Colorado and GMC Canyon
• Allows you to mount one 30" light bar in the lower grille opening
• CAD-designed for perfect fitment and OEM-like appearance
• Utilizes existing mounting points for easy installation - no cutting or drilling required
• Highly durable powdercoated steel construction
• Plug-and-play wiring harness included to power light bars
• Dimensions: 36" x 8" x 8"
• Weight: 12 lbs.

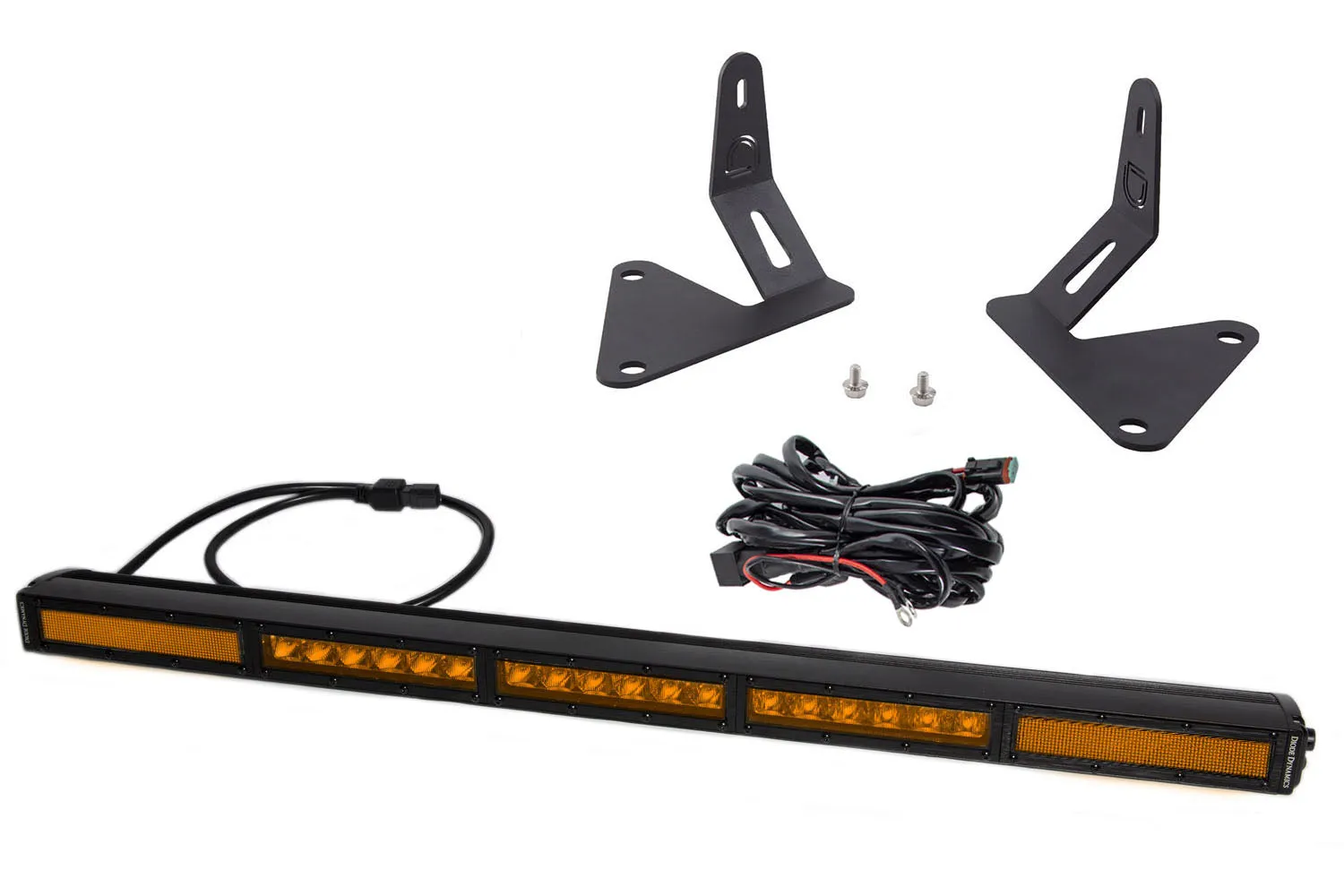

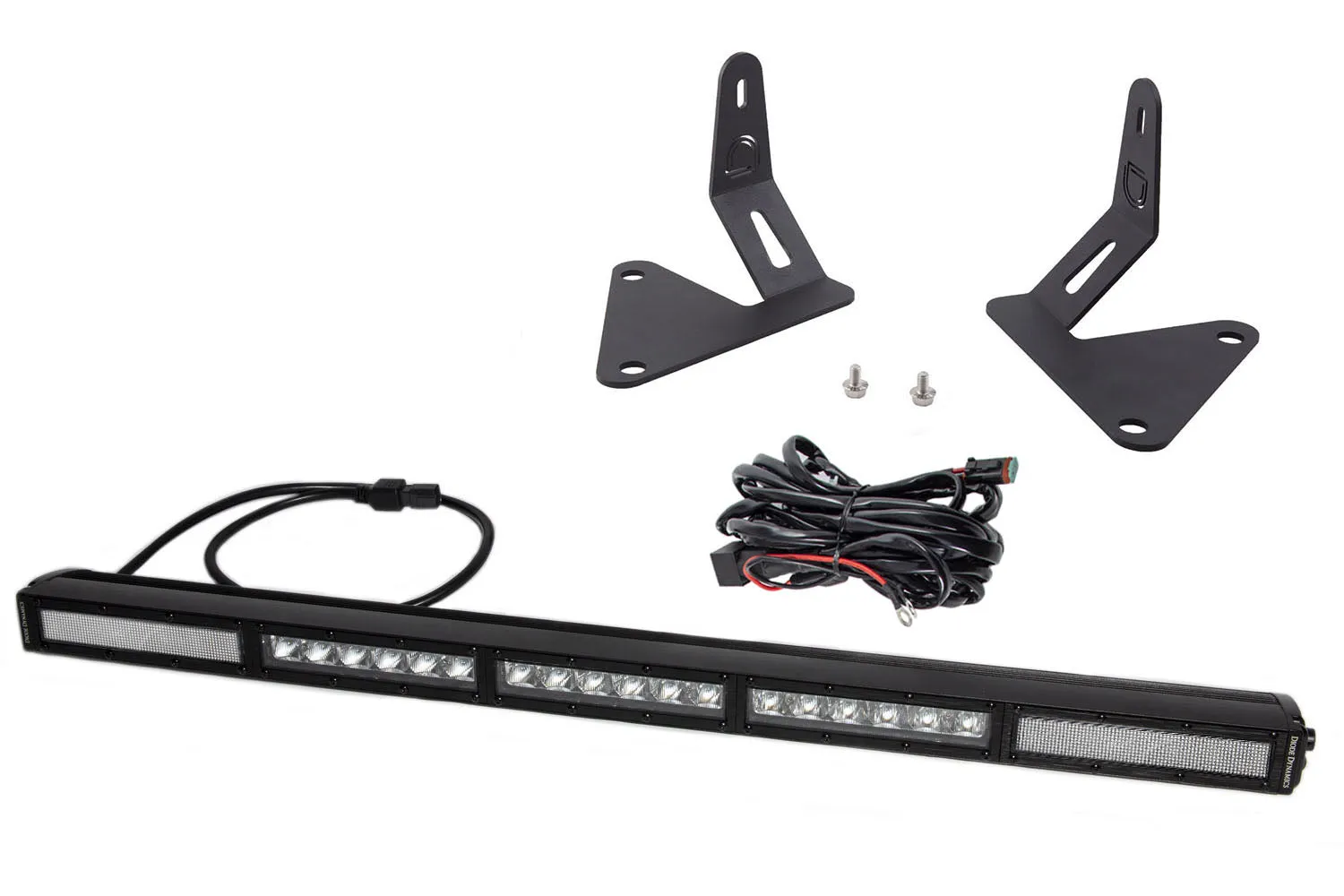

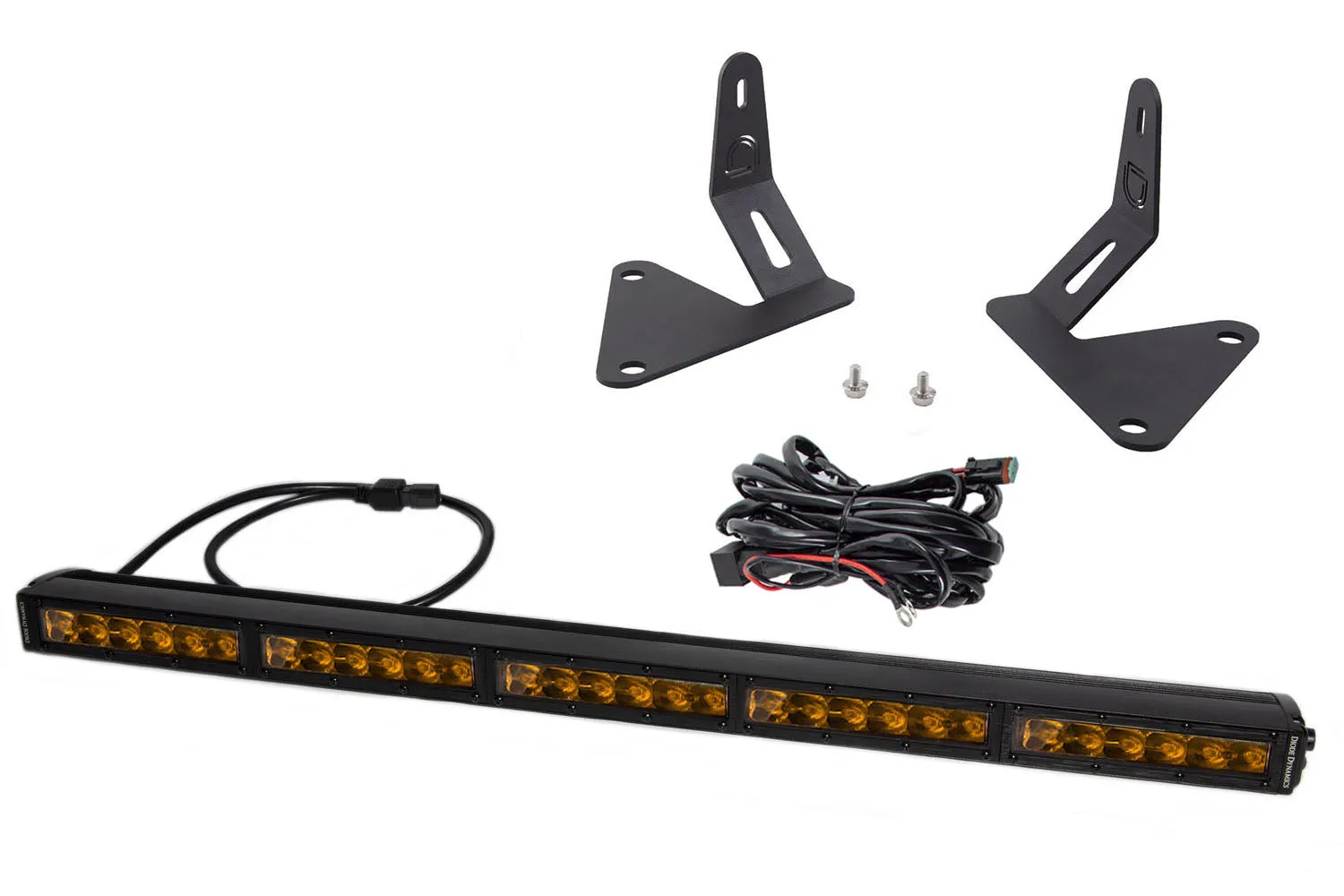

WHAT'S INCLUDED

• (2) application-specific heavy-duty steel brackets
• (1) SS30 30" Stage Series Light Bar
• (1) heavy-duty single-output relay harness
• All necessary hardware

SPECIFICATIONS
