Product Details
＋

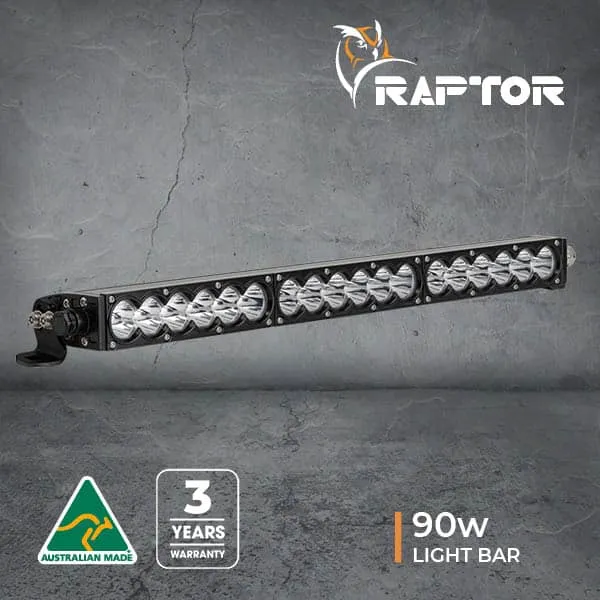

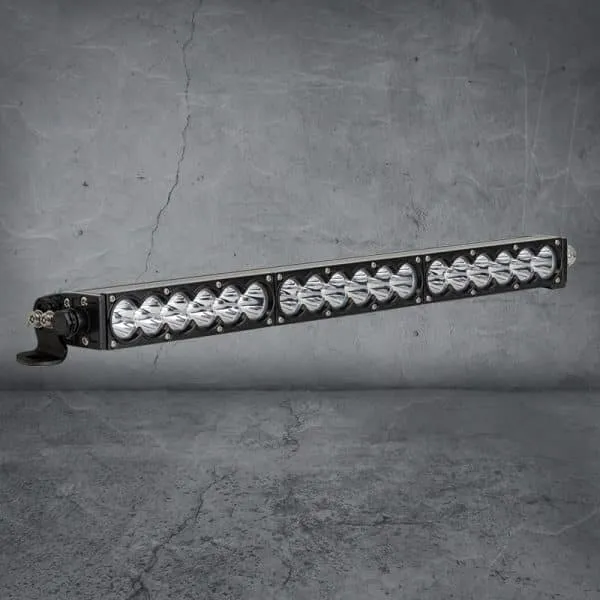

20.5 Inch LED Light Bar

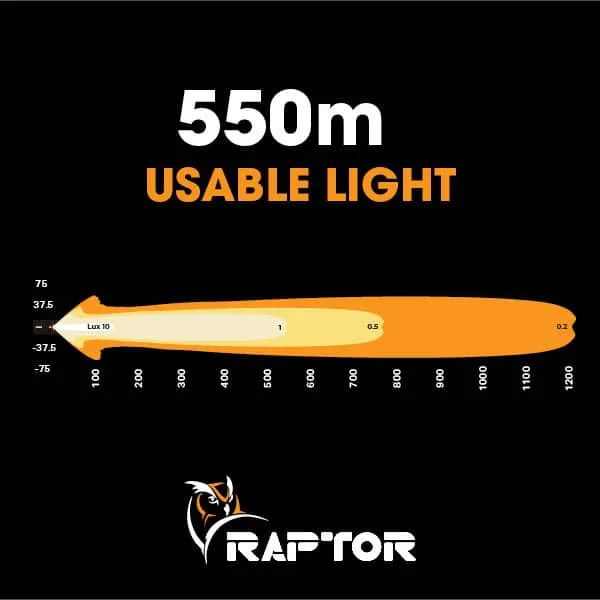

The RAPTOR LED Light Bars are manufactured from high pressure extruded aluminium, giving an extremely strong but light body. This, along with a high impact polycarbonate lens make the Raptor light bars exceptionally tough. The open-optic reflector gives a combination beam with very good distance and peripheral width of 100° from one lamp type.
To ensure maximum driver comfort the light bars are available with either 4000k or 5700k .
All RAPTOR lamps come with complete stainless steel pivot mounting brackets and stainless steel fixings. As with all Raptor products, the light bars are manufactured in Australia and covered by a 3-year warranty for total peace of mind.
| 90W RAPTOR LIGHT BAR SPECIFICATIONS | |
|---|---|
| Wattage | 90 Watts |
| Light Source | 18 x 5w LED's |
| Light Output – Raw | 10,800 Lumens |
| Light Output – Effective | 8,650 Lumens |
| Voltage | 9-36V |
| Current Draw | 6.7A @ 13.5V |
| Operating Temp. | -40 to 80 Deg C |
| Waterproof Rating | IP67 |
| Connector Type Plugs | 2 Pin Heavy Duty Deutsch |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Bracket | Stainless Steel |
| Colour Temperature | 4000K or 5700K |
| Lifespan | 50,000 Hours |
| Dimensions | 523 x 45 x 73mm |
| Net Weight | 1.7kg |
| Mounting Suitable | Side Mounts |
| Beams Type | Combo or Spread |
| Warranty | 3 Years |
| Harness | Harness not included, purchased separately. Harness to suit: DV12H |
| Part Number | |
| Combo, 5700K | RAP090LBv2 |
| Spread, 5700K | RAP090LBSv2 |
| Combo, 4000K | RAP090LB4v2 |
| Spread, 4000K | RAP090LB4Sv2 |
